產品名稱：
英管外螺紋/美制JIC內螺紋
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

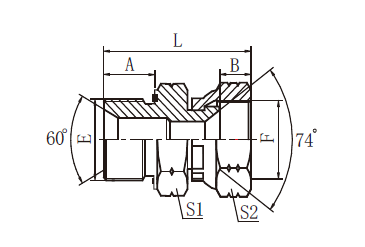

| 訂貨號 | 螺 紋 | 尺 寸 | |||||||
| E | F | A | B | L | S1 | S2 | |||
| B3J-04CS | G1/4"X19 | 7/16"X20 | 12 | 9 | 28 | 19 | 15 | ||
| B3J-04-06CS | G1/4"X19 | 9/16"X18 | 12 | 11 | 28.5 | 19 | 19 | ||
| B3J-04-08CS | G1/4"X19 | 3/4"X16 | 12 | 11 | 30.5 | 19 | 24 | ||
| B3J-06CS | G3/8"X19 | 9/16"X18 | 12 | 10.5 | 31 | 22 | 19 | ||
| B3J-06-08CS | G3/8"X19 | 3/4"X16 | 12 | 11 | 33 | 22 | 24 | ||
| B3J-08CS | G1/2"X14 | 3/4"X16 | 14 | 11 | 37.5 | 27 | 24 | ||
| B3J-12CS | G3/4"X14 | 1.1/16"X12 | 16 | 15 | 42.5 | 32 | 32 | ||
| B3J-12-08CS | G3/4"X14 | 3/4"X16 | 18.5 | 11 | 40 | 32 | 24 | ||
| B3J-12-16CS | G3/4"X14 | 1.5/16"X12 | 18.5 | 16 | 42 | 32 | 41 | ||
| B3J-16CS | G1"X11 | 1.5/16"X12 | 20.5 | 16 | 46 | 41 | 41 | ||
| B3J-20CS | G1.1/4"X11 | 1.5/8"X12 | 20.5 | 17 | 52 | 50 | 50 | ||
| B3J-24CS | G1.1/2"X11 | 1.7/8"X12 | 22 | 20 | 58.5 | 55 | 55 | ||
| B3J-32CS | G2"X11 | 2.1/2"X12 | 25.5 | 24.5 | 60 | 70 | 75 | ||
