產品名稱：
卡套式公制螺紋單向閥
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

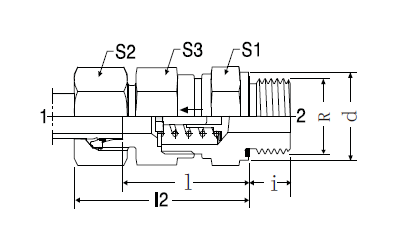

| 訂貨號 | 接管外徑D1 | 系列 | 工作壓力BAR | 通經DN | S2 | S3 | S1 | L2 | I | d | i | R |
| NRV6-02-08S | 8 | s | 400 | 4 | 19 | 19 | 19 | 46 | 31.5 | 19 | 12 | M14X1.5 |
| NRV6-02-10S | 10 | 6 | 22 | 24 | 22 | 54 | 38 | 22 | 12 | M16X1.5 | ||
| NRV6-02-12S | 12 | 8 | 24 | 27 | 24 | 57 | 41 | 22 | 12 | M18X1.5 | ||
| NRV6-02-14S | 14 | 10 | 27 | 32 | 27 | 62 | 44.5 | 27 | 14 | M20X1.5 | ||
| NRV6-02-15L | 15 | L | 250 | 12 | 27 | 32 | 27 | 60.5 | 45.5 | 27 | 14 | M18X1.5 |
| NRV6-02-16S | 16 | S | 400 | 12 | 30 | 36 | 32 | 66 | 48 | 27 | 14 | M22X1.5 |
| NRV6-02-18L | 18 | L | 160 | 16 | 32 | 36 | 36 | 66 | 50 | 27 | 14 | M22X1.5 |
| NRV6-02-20S | 20 | S | 400 | 16 | 36 | 46 | 41 | 73.5 | 52 | 32 | 16 | M27X2 |
| NRV6-02-22L | 22 | L | 160 | 20 | 36 | 46 | 41 | 71 | 55 | 32 | 16 | M26X1.5 |
| NRV6-02-25S | 25 | S | 250 | 20 | 46 | 50 | 46 | 78.5 | 54.4 | 40 | 18 | M33X2 |
| NRV6-02-28L | 28 | L | 100 | 25 | 41 | 55 | 50 | 79.5 | 63 | 40 | 18 | M33X2 |
| NRV6-02-30S | 30 | S | 250 | 25 | 50 | 60 | 60 | 90.5 | 64 | 50 | 20 | M42X2 |
| NRV6-02-35L | 35 | L | 100 | 32 | 50 | 60 | 60 | 90.5 | 69 | 50 | 20 | M42X2 |
| NRV6-02-38S | 38 | S | 250 | 32 | 60 | 70 | 65 | 100 | 69.5 | 55 | 22 | M48X2 |
| NRV6-02-42L | 42 | L | 100 | 32 | 60 | 70 | 65 | 91 | 68.5 | 55 | 22 | M48X2 |
*常規單向閥背壓為1bar，如需不同背壓，請在訂貨號后注明。
