產品名稱:
SAE 法蘭/焊接管
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

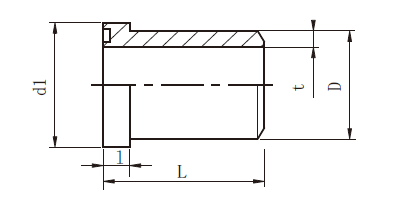

訂貨號 | 法蘭型號 | DXt | 尺 寸 | 壓力等級 MPa | |||||||
d1 | D | l | L | ||||||||
3000PSI | |||||||||||
AFLW-08-16X2 | 1/2” | 16X2 | 30.2 | 16 | 6.8 | 41 | 34.5 | ||||
AFLW-08-20X2.5 | 1/2” | 20X2.5 | 20 | ||||||||
AFLW-12-25X3 | 3/4” | 25X3 | 38.1 | 25 | 6.8 | 50 | |||||
AFLW-16-25X3 | 1” | 25X3 | 44.4 | 25 | 8 | 50 | |||||
AFLW-16-28X3 | 1” | 28X3 | 28 | ||||||||
AFLW-16-30X4 | 1” | 30X4 | 30 | ||||||||
AFLW-16-38X5 | 1” | 38X5 | 38 | ||||||||
AFLW-20-25X3 | 1.1/4” | 25X3 | 50.8 | 25 | 8 | 55 | 27.6 | ||||
AFLW-20-30X4 | 1.1/4” | 30X4 | 30 | ||||||||
AFLW-20-38X5 | 1.1/4” | 38X5 | 38 | ||||||||
AFLW-20-42X6 | 1.1/4” | 42X6 | 42 | ||||||||
AFLW-24-38X4 | 1.1/2” | 38X4 | 60.3 | 38 | 8 | 57 | 20.7 | ||||
AFLW-24-42X5 | 1.1/2” | 42X5 | 42 | ||||||||
AFLW-24-45X5 | 1.1/2” | 45X5 | 45 | ||||||||
AFLW-24-50X6 | 1.1/2” | 50X6 | 50 | ||||||||
AFLW-32-55X5 | 2” | 55X5 | 71.4 | 55 | 9.6 | 57 | |||||
AFLW-32-60X8 | 2” | 60X8 | 60 | ||||||||
AFLW-40-65X6 | 2.1/2” | 65X6 | 84.1 | 65 | 9.6 | 58 | 17.2 | ||||
AFLW-40-70X7.5 | 2.1/2” | 70X7.5 | 70 | ||||||||
AFLW-48-80X6 | 3” | 80X6 | 101.6 | 80 | 9.6 | 58 | 13.8 | ||||
AFLW-48-90X8 | 3” | 90X8 | 90 | ||||||||
6000PSI | |||||||||||
AFHW-08-16X2 | 1/2” | 16X2 | 31.7 | 16 | 7.8 | 34 | 40 | ||||
AFHW-08-20X2.5 | 1/2” | 20X2.5 | 20 | ||||||||
AFHW-12-16X2 | 3/4” | 16X2 | 41.3 | 16 | 8.8 | 38 | |||||
AFHW-12-20X2.5 | 3/4” | 20X2.5 | 20 | ||||||||
AFHW-12-25X4 | 3/4” | 25X4 | 25 | ||||||||
AFHW-16-25X3 | 1” | 25X3 | 47.6 | 25 | 9.5 | 40 | |||||
AFHW-16-30X4 | 1” | 30X4 | 30 | ||||||||
AFHW-16-38X5 | 1” | 38X5 | 38 | ||||||||
AFHW-20-25X3 | 1.1/4” | 25X3 | 54 | 25 | 10.3 | 45 | |||||
AFHW-20-30X4 | 1.1/4” | 30X4 | 30 | ||||||||
AFHW-20-38X5 | 1.1/4” | 38X5 | 38 | ||||||||
AFHW-20-42X6 | 1.1/4” | 42X6 | 42 | ||||||||
AFHW-24-38X5 | 1.1/2” | 38X5 | 63.5 | 38 | 12.6 | 50 | |||||
AFHW-24-45X6.5 | 1.1/2” | 45X6.5 | 45 | ||||||||
AFHW-24-48X8 | 1.1/2” | 48X8 | 48 | ||||||||
AFHW-24-50X8 | 1.1/2” | 50X8 | 50 | ||||||||
AFHW-32-60X8 | 2” | 60X8 | 79.4 | 60 | 12.6 | 58 | |||||
AFHW-32-60X10 | 2” | 60X10 | 60 |
