首頁 > 產品中心 > 過渡接頭 > 公制卡套式接頭 > 英錐管外螺紋 90°彎接頭
< >

產品名稱:

英錐管外螺紋 90°彎接頭

產品系列搜索

請選擇您想要尋找的相關產品系列

產品描述

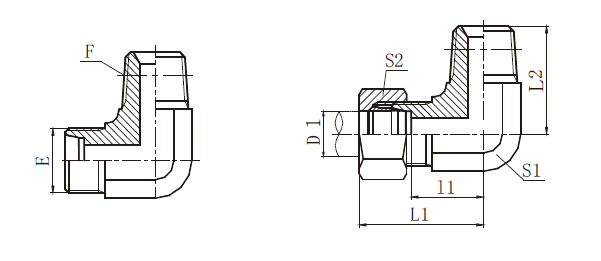

訂貨號螺    紋鋼管外徑尺    寸工作壓力 MPa
EFD1l1L1L2S1S2
A04-12-02/9M12X1.5R1/8"X286132821111425
輕系列 L
A04-12-04/9M12X1.5R1/4"X19615.530.525.51414
A04-14-02/9M14X1.5R1/8"X28815.530.523.51417
A04-14-04/9M14X1.5R1/4"X19815.530.525.51417
A04-16-04/9M16X1.5R1/4"X191017.532.526.51619
A04-16-06/9M16X1.5R3/8"X191017.532.528.51619
A04-16-08/9M16X1.5R1/2"X14102136362219
A04-18-04/9M18X1.5R1/4"X19122134281922
A04-18-06/9M18X1.5R3/8"X1912193430.51922
A04-18-08/9M18X1.5R1/2"X14122136362222
A04-22-06/9M22X1.5R3/8"X1915223732.52227
A04-22-08/9M22X1.5R1/2"X14152237362227
A04-22-12/9M22X1.5R3/4"X141525.540.543.5272716
輕系列 L
A04-26-08/9M26X1.5R1/2"X141825.54239.52732
A04-26-12/9M26X1.5R3/4"X141825.54243.52732
A04-30-12/9M30X2R3/4"X142229.545.845.33036
A04-30-16/9M30X2R1"X112231.548503336
A04-36-16/9M36X2R1"X112833.349.8523641
A04-36-20/9M36X2R1.1/4"X112836.252.7574141
A04-45-20/9M45X2R1.1/4"X113539.260.7614850
A04-52-24/9M52X2R1.1/2"X114244.867.8685560
A14-14-04/9M14X1.5R1/4"X19617.532.525.5141740
重系列 S
A14-16-04/9M16X1.5R1/4"X19818.733.726.51619
A14-18-06/9M18X1.5R3/8"X191019.53630.51922
A14-20-06/9M20X1.5R3/8"X191219.53630.51924
A14-22-06/9M22X1.5R3/8"X1914234132.52227
A14-22-08/9M22X1.5R1/2"X14142341362227
A14-24-08/9M24X1.5R1/2"X14162442.537.32430
A14-30-08/9M30X2R1/2"X142028.349.8413036
A14-30-12/9M30X2R3/4"X142028.349.845.33036
A14-36-16/9M36X2R1"X112532.856.852.5364625
重系列 S
A14-42-16/9M42X2R1"X113036.262.756.54150
A14-52-20/9M52X2R1.1/4"X113845.876.8675560
A14-52-24/9M52X2R1.1/2"X113845.876.8685560

注:如需帶卡套及螺母整套訂貨,則請在代號后加“/A”,如A04-22-08/9A。如需不銹鋼304材料,請在訂貨號后加SS,不銹鋼316L材料,請在訂貨號后加SSB。
